DLS Virtual proofStation

Specifications

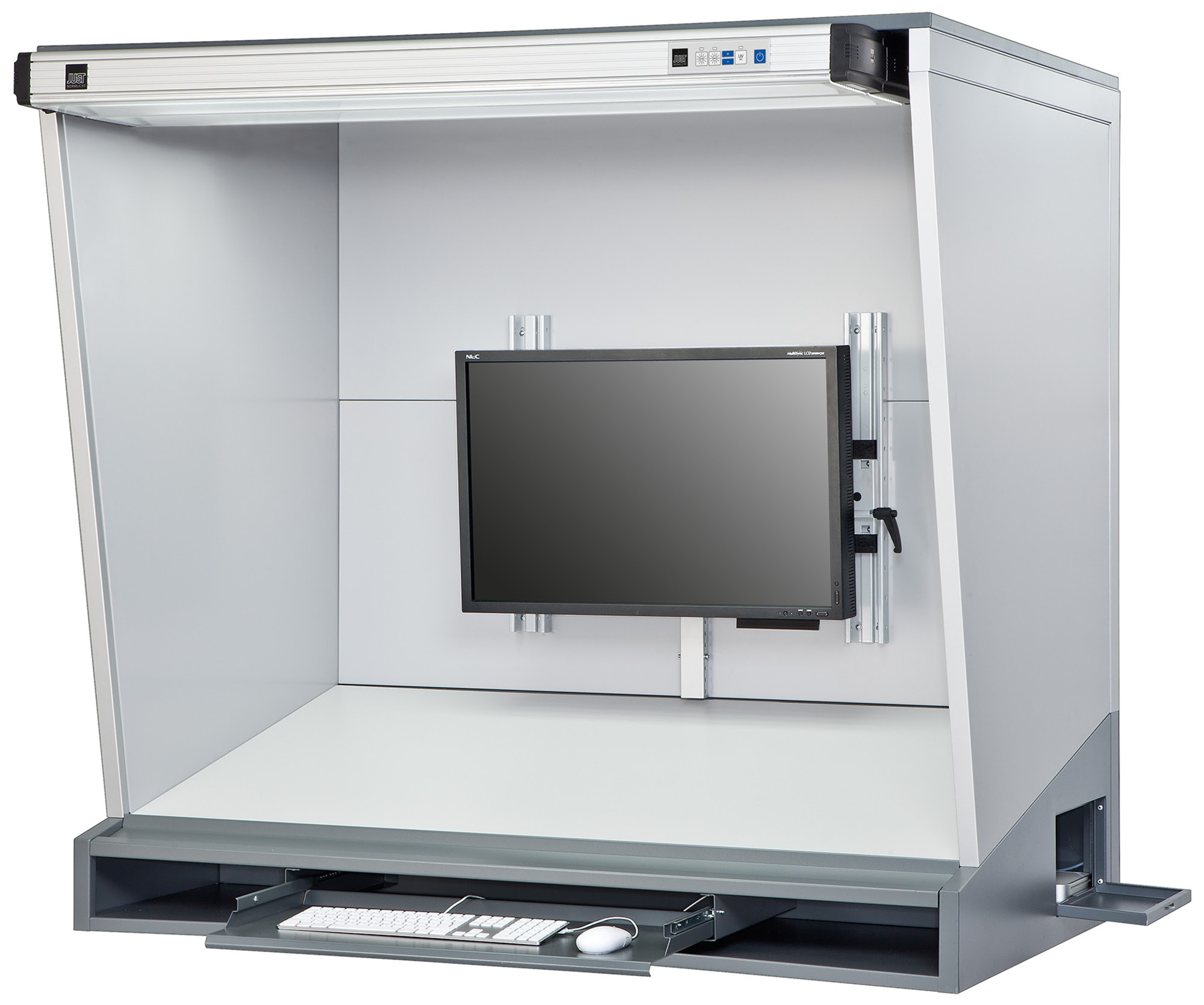

The DLS Virtual proofStations have all you need for the modern soft proof workflow. From dimmable and switchable D50/D65 LED luminaire, monitor rails, all the way to a pull-out keyboard and a USB interface – they come with everything for reliable color matching from prepress to press. In addition to the regular color matching station, the Virtual proofStations are also available as desktop solutions and side-by-side versions. The latter permit parallel viewing of multiple or large printed sheets. Choose the station that suits your needs.

Unique LED light technology by JUST, Fogra certified to ISO 3664:2009, Pat. No. US 8,592,748 B2
Switchable light: D50 and D65 according to ISO 3664 and ISO 3668
UV content can be enabled or disabled for either illuminant regarding new and old ISO standard
UV-ONLY: UV-A for the detection of optical brighteners
Continuously dimming and USB connection for soft proofing applications
No color shifts while dimming
Matching of the brightness of screen and LED color proof light by monitor calibration software
Including pull-out keyboard and monitor mount
No preheating after turning on
20x longer operating life despite to fluorescent lamps (> 50.000 h)
Stable light output during the entire lifespan
Annual relamping not required
Side walls for shielding against extraneous light
Extremely homogeneous as well as glare- and reflection-free illumination, thanks to Fresnel-type prismatic lens
Complete viewing surface designed in neutral, matt gray (Munsell N7)
2000 lux illuminance according to ISO standard
Color Rendering Index (CRI) Ra ≥ 95
Exact color coordinates (10°):
D50: x = 0.3478 / y = 0.3595 (≤ 0,002)
D65: x = 0.3138 / y = 0.3309 (≤ 0,002)
Low metamerism index in the visible range: ≤ 0.8 (MIvis)
Low metamerism index in the UV range: ≤ 0.6 (MIuv)
NOTE: Monitors and keyboards shown are not included

Illuminant characteristics

Asymmetrical light design for viewing from one side (fixed viewing position)
Almost no reflection and glare
Switch off UV content for assessment to old ISO 3664
Noon daylight (LED 5000 K, D50 CIE)
Average daylight from the northern sky (LED 6500 K, D65 CIE)
UV-Only (UV-A)

Features

USB interface for connection to PC
Illuminants are dimmable
A monitor mount is included
« general product features of all devices; special featuers of particular devices »
Different illuminant sequences can be programmed

Applications

For flat viewing samples, such as paper, fabrics, coatings
Fit for soft proofing – Device brightness can be adapted to monitor brightness (for SP)
« general product features of all devices; special featuers of particular devices »
For particularly large and flat viewing samples
Good detection of metamerism thanks to multiple illuminants
