state-of-the-art assessment with
led-based tecnology from just
Standardized viewing conditions are essential for reliable evaluative of colored materials. With the DLS Color Viewing Light v8 booth, you can assess graphic and industrial materials of all kinds in compliance with standards such as ISO 3668, ISO 3664 and CIE 15:2018.
Standardized assessment
due to optimal Control
5 TYPES OF LIGHT IN A BOOTH
The newly developed control unit makes it even easier to evaluate color and appearance according to the wishes of each customer.
In addition to the illuminants D50, D65 and UV-A, two further alternative illuminants can be defined for ALT1 and ALT2 at the customer's request.
LED, fluorescent tube, or both?
Multiple light sources in the DLS Color Viewing Light v8 allow evaluations using both your internal color standard, as well as the light source where the final customer will see the product – ideal for metamerism detection. During manufacturing, JUST programs the ALT1 and ALT2 keys according to your specific requirements.
Configurations include:
A purely LED-based viewing booth with
ALT1 and ALT2 programmed according to two CIE LED Illuminants from B1 to B5
A Hybrid- viewing booth with
ALT1 according to one CIE LED from B1 through B5 and ALT2 using TL83/TL84/F11 with fluorescent tubes.
The resulting flexibility means your viewing environment can have D65, D50 as well as Store lighting (e.g. 4100K) and Home lighting (e.g. 2700K) – the full range of common environments.
Learn more about...
Note: In February 2022, the EU Commission published new RoHS directives banning the use and sale of mercury-containing fluorescent lamps after August 24, 2023. LED-based luminaires are therefore much more sustainable than fluorescent lamps.
VIEWING CONDITIONS
ACCORDING TO CIE 15:2018
Five (B1-B5) of the nine new CIE light emitting diodes (LEDs) definitions have been added to the DLS Color Viewing Light v8 Series.
B1-B5 are typical blue excited phosphor type LEDs with different CCTs.
LED-B1 2733K
LED-B2 2998K
LED-B3 4103K
LED-B4 5109K
LED-B5 6598K
COMPLEMENTARY ACCESSORIES FOR COLOR MATCHING.
For the evaluation of shiny or reflective surfaces, a reproducible viewing angle that minimizes gloss and glare is recommended. These sample holders create a standardized viewing condition for such materials, further standardizing your viewing environment.
You can find these and other accessories in our webshop.

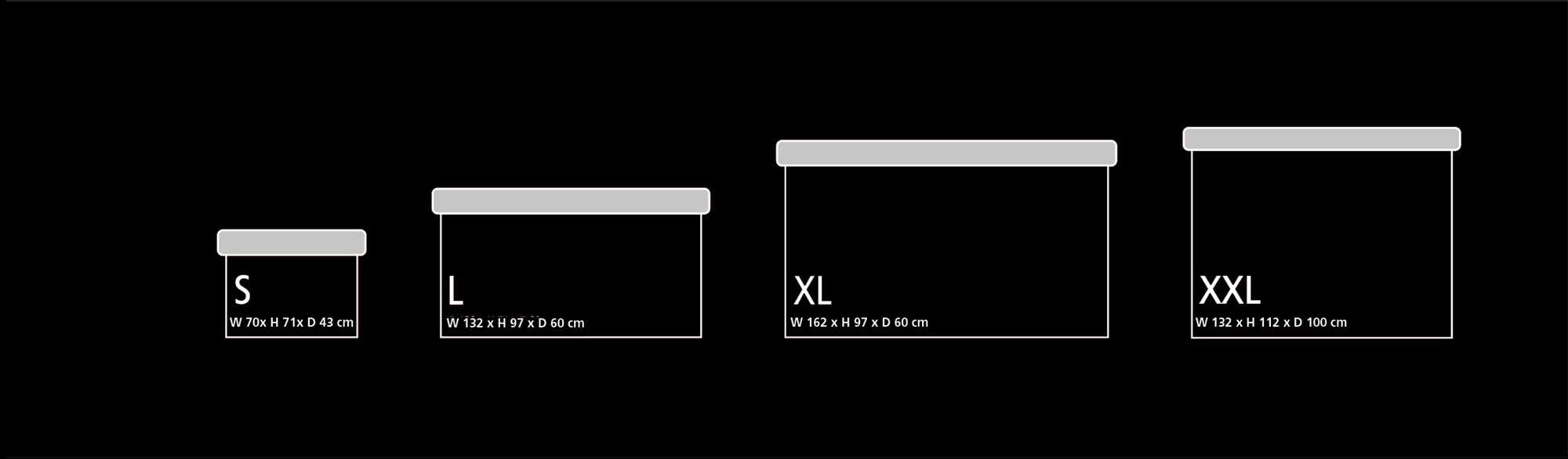

4 SIZES.
many applications & possibilities.
No matter how big your samples and specimens may be.
There is always space for reliable color matching in one of the four different sizes.
Select the booth size that best suits your requirements.
REQUEST A NO-OBLIGATION QUOTE FOR YOUR COLOR VIEWING BOOTH TODAY!
Us the contact form to receive a quote for a DLS Color Viewing Light v8.
